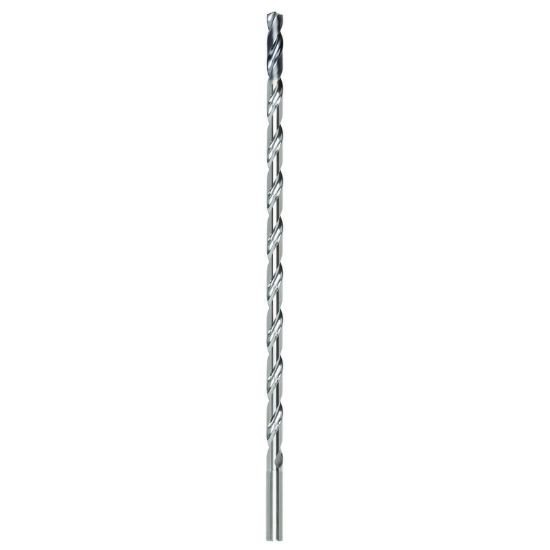

Picture of Widia/Kennametal TDD108Z12304 SC Drill XL 12,304mm/.4844/ 30

Widia/Kennametal TDD108Z12304 SC Drill XL 12,304mm/.4844/ 30

Part Number: WID3899675
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1137648
Vendor: Sussex Tool and Supply
$1,406.51

Description

WIDIA 3899675 Deep Hole SC DRILL XL 12,304MM/.4844/ 30 Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 18.5433 471.00MM
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.4844 12.30MM - 31/64
Flute Length 14.8820 378.00MM
Dia Deep 30.0x Dia
Geometry & Angles
Included Angle 132°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.4844 12.30MM - 31/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
Grade WU20PD
