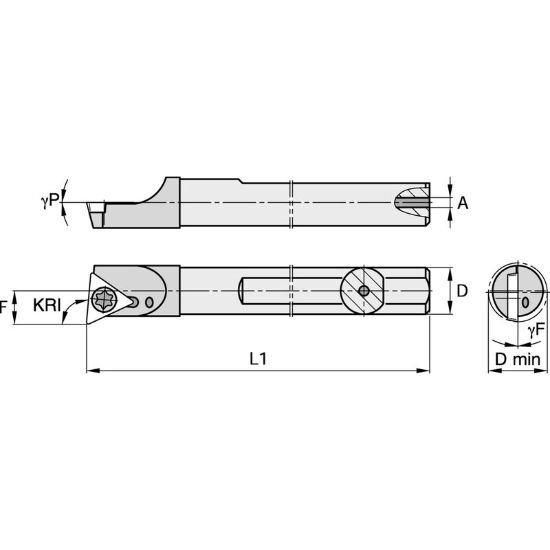

Picture of Widia/Kennametal SDBM162545R Carbide Triangle Insert Boring Bar 0.629

Widia/Kennametal SDBM162545R Carbide Triangle Insert Boring Bar 0.629

Part Number: WID2822085 ISO: SDBM162545R ANSI:SDBM162545R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076040
Vendor: Sussex Tool and Supply
$732.68

Description

WIDIA 2822085 60.0 ° Boring Bar Dia0.6299 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape 60.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 1
Insert Size Ic 16 "6"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.6790
Materials & Finish
Tool Material Carbide
