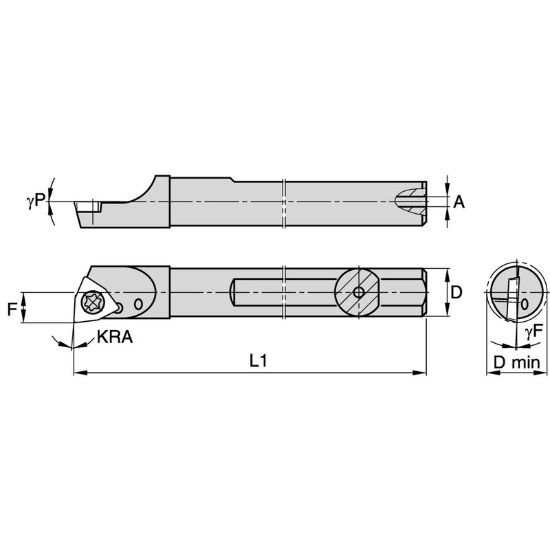

Picture of Widia/Kennametal SCBIW750103R Carbide Trigon Insert Boring Bar 0.750

Widia/Kennametal SCBIW750103R Carbide Trigon Insert Boring Bar 0.750

Part Number: WID2822591 ISO: SCBIW750103R ANSI:SCBIW750103R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076050
Vendor: Sussex Tool and Supply
$850.91
WIDIA 2822591 Trigon Boring Bar Dia0.7500 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.7500 19.05MM
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Insert Size Ic 06 "32"
Hand Right Hand
Inter/Extern Internal
Min Bore 0.7970
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle
