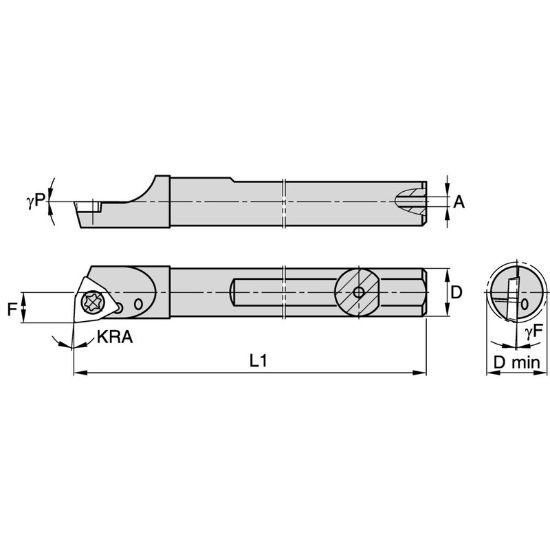

Picture of Widia/Kennametal QCBIW50083L Carbide Trigon Insert Boring Bar 0.500

Widia/Kennametal QCBIW50083L Carbide Trigon Insert Boring Bar 0.500

Part Number: WID2825318 ISO: QCBIW50083L ANSI:QCBIW50083L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076063
Vendor: Sussex Tool and Supply
$501.93

Description

WIDIA 2825318 Trigon Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 21
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle
Performance & Capacity
Min Bore 0.5380
Materials & Finish
Tool Material Carbide
