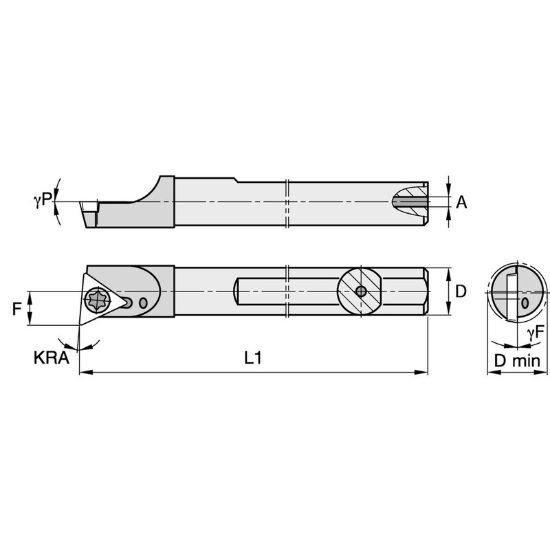

Picture of Widia/Kennametal QCBI50085R Carbide Triangle Insert Boring Bar 0.500

Widia/Kennametal QCBI50085R Carbide Triangle Insert Boring Bar 0.500

Part Number: WID2825272 ISO: QCBI50085R ANSI:QCBI50085R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076057
Vendor: Sussex Tool and Supply
$501.92

Description

WIDIA 2825272 60.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape 60.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.5630
Materials & Finish
Tool Material Carbide
