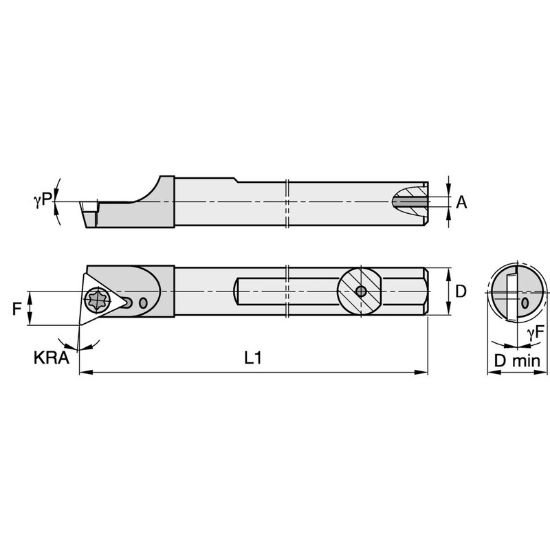

Picture of Widia/Kennametal QCBI50085L Carbide Triangle Insert Boring Bar 0.500

Widia/Kennametal QCBI50085L Carbide Triangle Insert Boring Bar 0.500

Part Number: WID2825278 ISO: QCBI50085L ANSI:QCBI50085L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076058
Vendor: Sussex Tool and Supply
$450.36
WIDIA 2825278 60.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.5000 12.70MM
Overall Length 8.0000 203.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape 60.0°
Insert Type Positive
Insert Size Ic 07 "21"
Hand Left Hand
Inter/Extern Internal
Min Bore 0.5630
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
