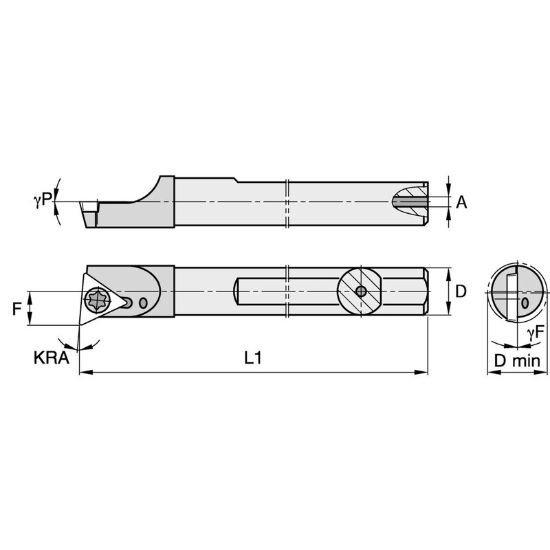

Picture of Widia/Kennametal QCBI37565R Carbide Triangle Insert Boring Bar 0.375

Widia/Kennametal QCBI37565R Carbide Triangle Insert Boring Bar 0.375

Part Number: WID2825290

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076060
Vendor: Sussex Tool and Supply
$466.12
Products specifications
Attribute name Attribute value
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Hand Right Hand
Shank Or Pilot Diameter 0.3750 9.52MM - 3/8
Insert Application General Purpose
Cutter Type Boring Bar
Inter Or Extern Internal
Overall Length 6.0000 152.40MM
Insert Size (IC) 07 "21"
Machine Side (Toolpost) BBAR0.3750
Insert Type Positive
Min Bore 0.4380
Insert Style TP
Type of Tool Boring Bar
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape 60.0°
Machine Side (Toolpost) Connection Type Boring Bar
Flutes Or Inserts 1
Shipping State PENNSYLVANIA
Tool Material Carbide
Mach Side Connection Size 0.3750 9.53MM - 3/8
Coolant Thru Thru Coolant
Made In USA No
