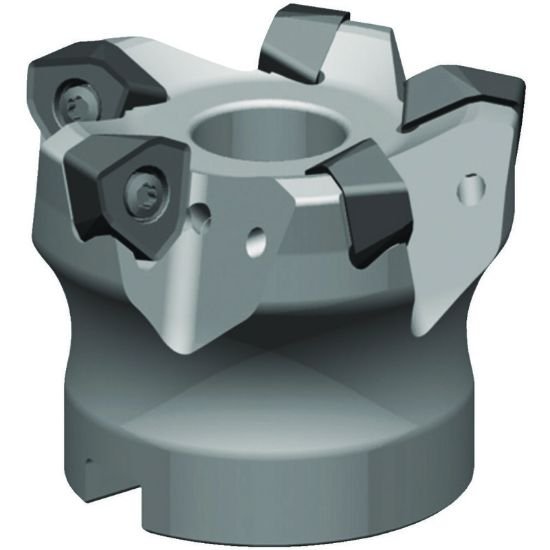

Picture of Widia/Kennametal M370D400Z08S150WO12 Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

Widia/Kennametal M370D400Z08S150WO12 Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

Part Number: WID5352424 ISO: M370D400Z08S150WO12 ANSI:M370D400Z08S150WO12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019079
Vendor: Sussex Tool and Supply
$950.80
WIDIA 5352424 Trigon Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.0000 50.80MM
Coolant Thru Thru Coolant
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 12
Cut Dia Min 3.3330 84.66MM
Hand Right Hand
Depth Of Cut Max 0.0780
Max RPM 13000
