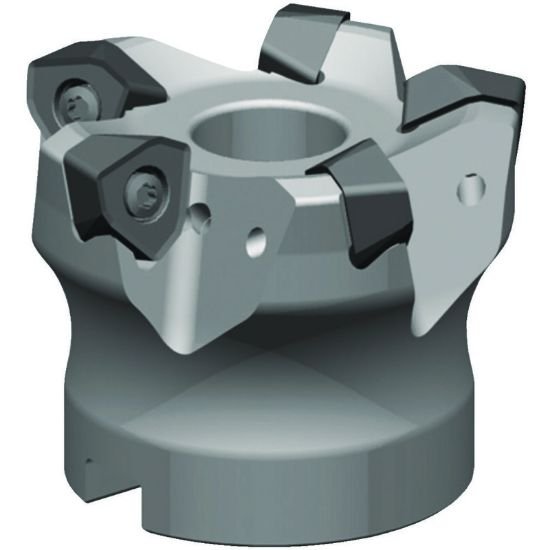

Picture of Widia/Kennametal M370D300Z05S125WO12 Milling Cutter 3.000 Cutter Diameter Face Mill 1.250

Widia/Kennametal M370D300Z05S125WO12 Milling Cutter 3.000 Cutter Diameter Face Mill 1.250

Part Number: WID5352421 ISO: M370D300Z05S125WO12 ANSI:M370D300Z05S125WO12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019076
Vendor: Sussex Tool and Supply
$748.03
WIDIA 5352421 Trigon Feed Mill SHELL1.2500 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 2.0000 50.80MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 12
Cut Dia Min 2.3330 59.26MM
Hand Right Hand
Depth Of Cut Max 0.0780
Max RPM 19000
