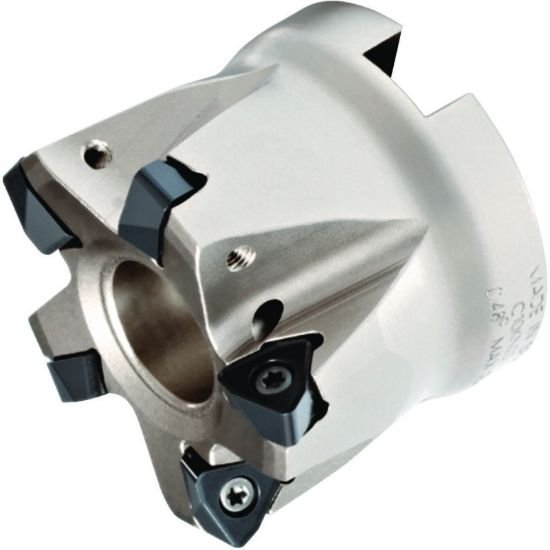

Picture of Widia/Kennametal M370D250Z07S075WO08 Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

Widia/Kennametal M370D250Z07S075WO08 Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

Part Number: WID4171169 ISO: M370D250Z07S075WO08 ANSI:M370D250Z07S075WO08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018966
Vendor: Sussex Tool and Supply
$722.81

Description

WIDIA 4171169 Trigon Feed Mill SHELL0.7500 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5750 40.01MM
Flutes/Inserts 7
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 804
Performance & Capacity
Cut Dia Min 1.9500 49.53MM
Depth Of Cut Max 0.0490
Max RPM 8300
Materials & Finish
Tool Material Steel
