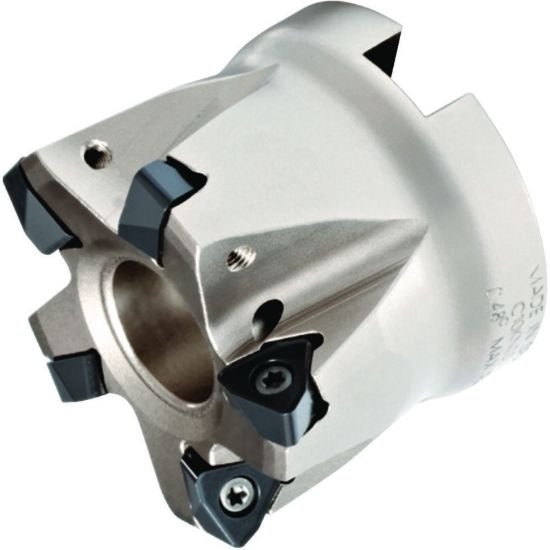

Picture of Widia/Kennametal M370D200Z05S075WO08 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Widia/Kennametal M370D200Z05S075WO08 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Part Number: WID4047661 ISO: M370D200Z05S075WO08 ANSI:M370D200Z05S075WO08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018939
Vendor: Sussex Tool and Supply
$535.88
WIDIA 4047661 Trigon Feed Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5750 40.01MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 1.4500 36.83MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 8300
