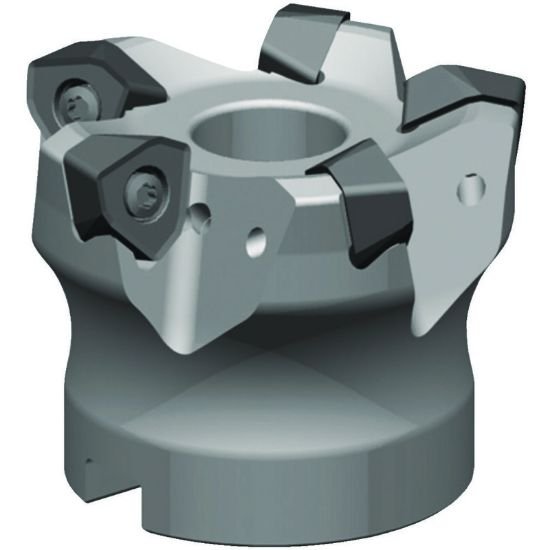

Picture of Widia/Kennametal M370D200Z04S075WO12 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Widia/Kennametal M370D200Z04S075WO12 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

Part Number: WID5352397 ISO: M370D200Z04S075WO12 ANSI:M370D200Z04S075WO12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019072
Vendor: Sussex Tool and Supply
$714.24

Description

WIDIA 5352397 Trigon Feed Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5750 40.01MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 12
Performance & Capacity
Cut Dia Min 1.3350 33.91MM
Depth Of Cut Max 0.0780
Max RPM 4000
Materials & Finish
Tool Material Steel
