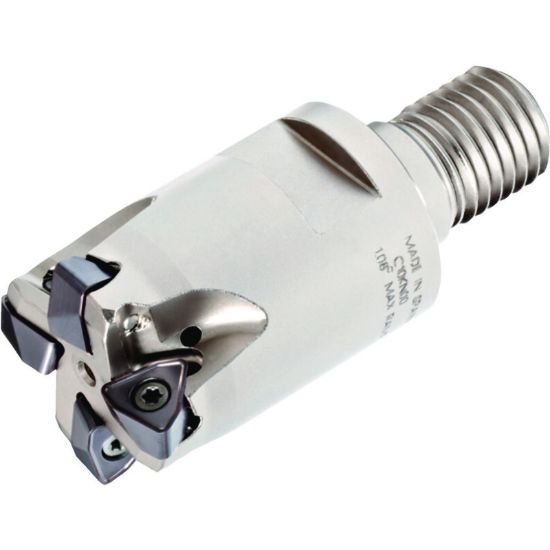

Picture of Widia/Kennametal M370D100Z03M12WO08 Milling Cutter 1.000 Cutter Diameter Screw On M12

Widia/Kennametal M370D100Z03M12WO08 Milling Cutter 1.000 Cutter Diameter Screw On M12

Part Number: WID4171164 ISO: M370D100Z03M12WO08 ANSI:M370D100Z03M12WO08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018963
Vendor: Sussex Tool and Supply
$410.41

Description

WIDIA 4171164 Trigon Feed Mill Thread On SCREWM12 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Dimensions & Sizing
Overall Length 2.2450 57.02MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 804
Performance & Capacity
Cut Dia Min 0.4600 11.68MM
Depth Of Cut Max 0.0490
Max RPM 20000
Materials & Finish
Tool Material Steel
