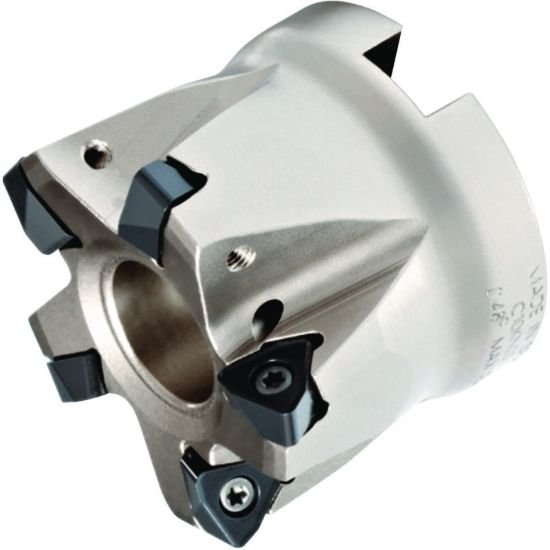

Picture of Widia/Kennametal M370D080Z07WO08 Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Widia/Kennametal M370D080Z07WO08 Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Part Number: WID4171225 ISO: M370D080Z07WO08 ANSI:M370D080Z07WO08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1018970
Vendor: Sussex Tool and Supply
$764.15

Description

WIDIA 4171225 Trigon Feed Mill SHELL1.0630 Negative 3.1490 79.98MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9680 49.99MM
Flutes/Inserts 7
Tool Dia 3.1490 79.98MM
Insert Size Ic 804
Performance & Capacity
Cut Dia Min 2.6000 66.04MM
Depth Of Cut Max 0.0490
Max RPM 5000
Materials & Finish
Tool Material Steel
