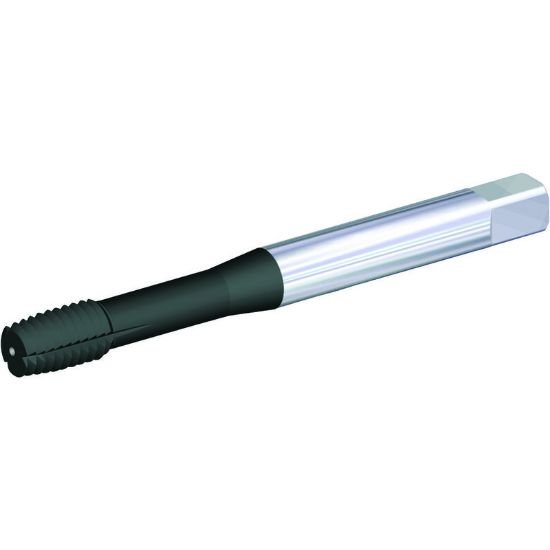

Picture of Widia/Kennametal GX495010 M10-1.50mm Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Widia/Kennametal GX495010 M10-1.50mm Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Part Number: WIDGX495010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$302.95
SKU: 1171142

Description

WIDIA 5520844 M10x1.50MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 3.9450 100.20MM
Shank/Pilot Dia 0.3940 10.01MM
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.3120
Performance & Capacity
Cut Rating Aluminum, Brass, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiN + CrC
Standards & Identification
Dimension Standard DIN/DIN
