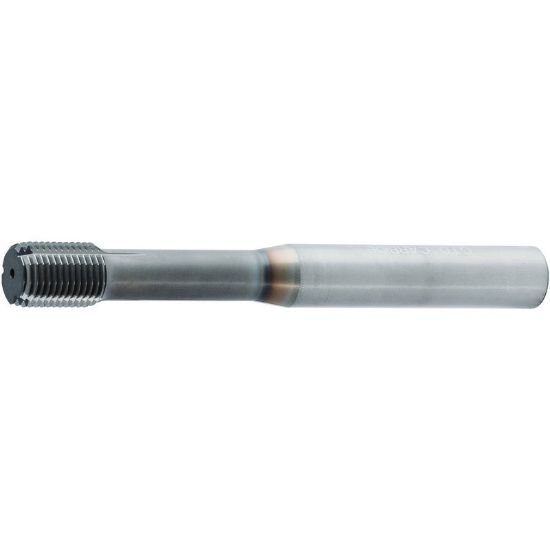

Picture of Widia/Kennametal GX492911 M10-1.50mm Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Widia/Kennametal GX492911 M10-1.50mm Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC

Part Number: WIDGX492911
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M10 × 1.50MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171154
Vendor: Sussex Tool and Supply
$353.93

Description

WIDIA 5551171 M10x1.50MM Roll Form Bottoming 1.0P-2.0P Carbide TiN + CrC 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 3.5430 89.99MM
Shank/Pilot Dia 0.3810 9.68MM
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2840
Performance & Capacity
Cut Rating Aluminum, Brass, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiN + CrC
Standards & Identification
Dimension Standard DIN/DIN
