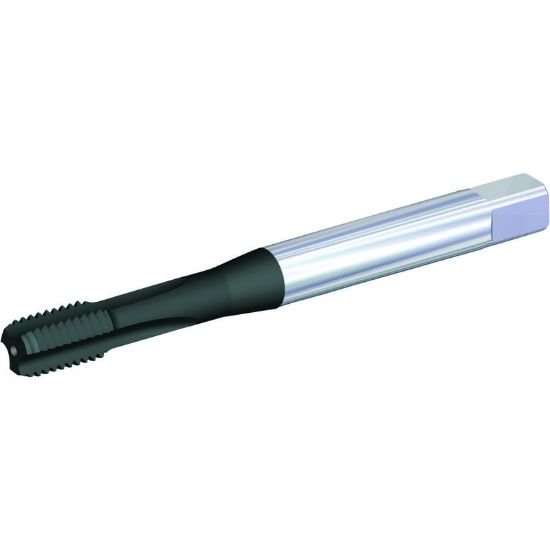

Picture of Widia/Kennametal GX475008 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Widia/Kennametal GX475008 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Part Number: WIDGX475008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171138
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5520840 M8x1.25MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TiN + CrC
Overall Length 3.5430 89.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3149 8.00MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2410
Tap Chamfer 1.0P-2.0P
