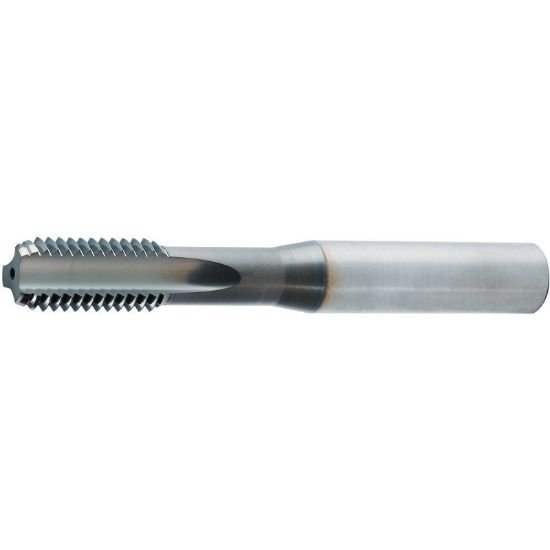

Picture of Widia/Kennametal GX472870 M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Widia/Kennametal GX472870 M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Part Number: WIDGX472870
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.75MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171151
Vendor: Sussex Tool and Supply
$290.12

Description

WIDIA 5551165 M12x1.75MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 3.9450 100.20MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 3
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiN + CrC
Standards & Identification
Dimension Standard DIN/DIN
