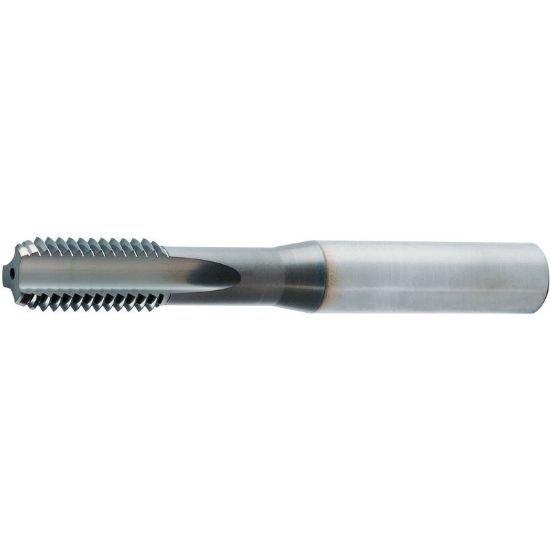

Picture of Widia/Kennametal GX472867 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Widia/Kennametal GX472867 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC

Part Number: WIDGX472867
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M8 × 1.25MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171149
Vendor: Sussex Tool and Supply
$277.97

Description

WIDIA 5551162 M8x1.25MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiN + CrC 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 3.1560 80.16MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiN + CrC
Standards & Identification
Dimension Standard DIN/DIN
