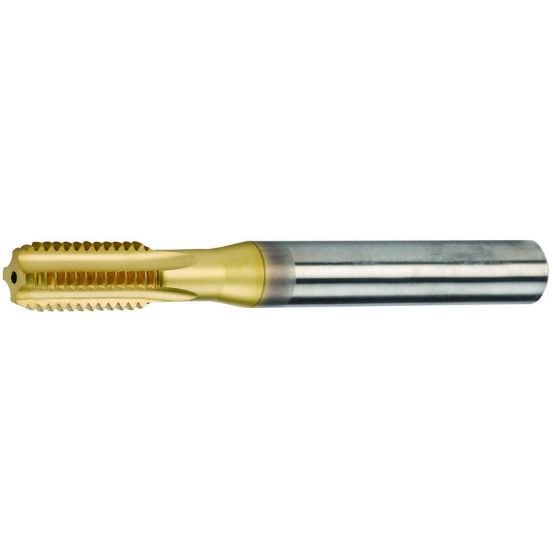

Picture of Widia/Kennametal GX352737 M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiCN

Widia/Kennametal GX352737 M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiCN

Part Number: WIDGX352737

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171145
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5551155 M12x1.75MM Cut Spiral Flute Bottoming 1.0P-2.0P Carbide TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TICN
Overall Length 3.9450 100.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Chamfer 1.0P-2.0P
