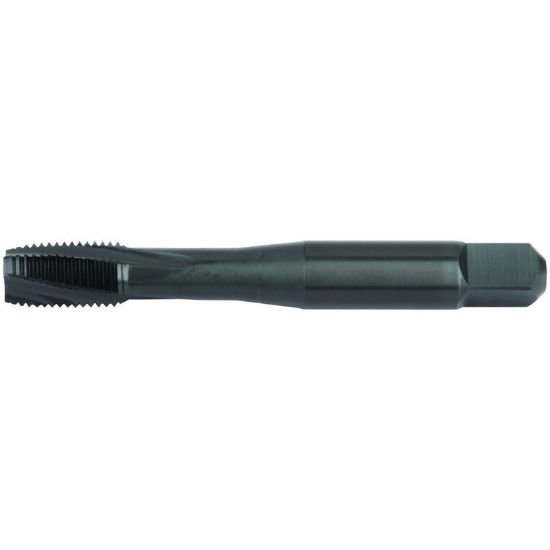

Picture of Widia/Kennametal GT945053 1/4-28.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT945053 1/4-28.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Part Number: WIDGT945053

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171664
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5705999 1/4"x28.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-PM TiCN H4/GH4 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H4/GH4
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 1.8900
Tap Chamfer 1.0P-2.0P
