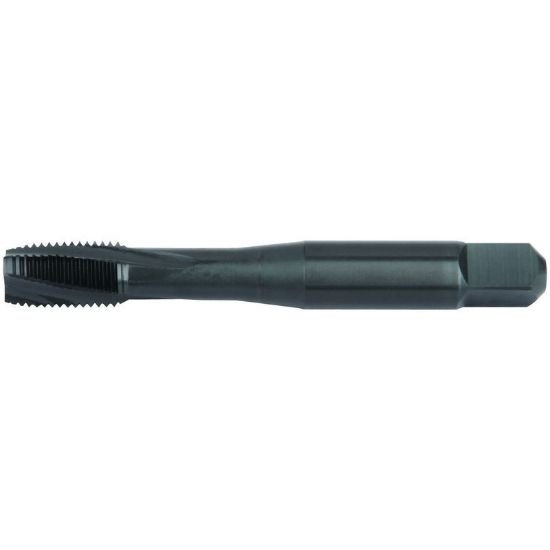

Picture of Widia/Kennametal GT945051 1/4-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT945051 1/4-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal TiCN

Part Number: WIDGT945051

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171662
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5705997 1/4"x20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-PM TiCN H5/GH5 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 1.8900
Tap Chamfer 1.0P-2.0P
