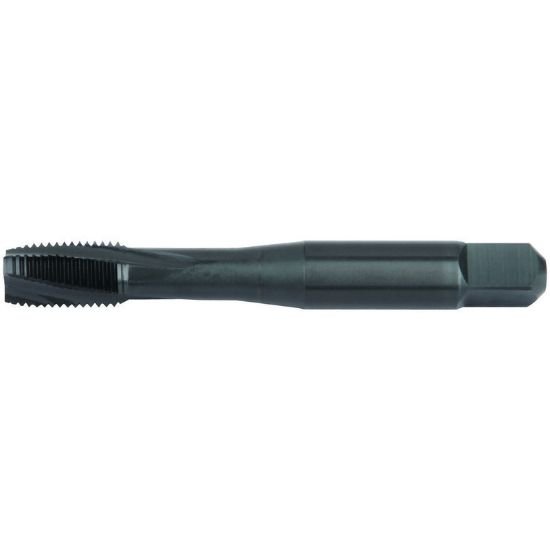

Widia/Kennametal GT945036 5/8-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal Nitride + Steam Oxide
Widia/Kennametal GT945036 5/8-18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-Powder Metal Nitride + Steam Oxide
Part Number: WIDGT945036
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
WIDIA/KENNAMETAL
SKU:
1171675
Vendor:
Sussex Tool and Supply
Call (262) 251-4020 for pricing
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
WIDIA 5706032 5/8"x18.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-PM Nitride + Steam Oxide H3/GH3 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
Ohio
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE-PM
Machine Side Connection Type
Tap Collet
Cut Rating
Stainless Steel, <40HRC Steel
Coating
Nitride + Steam Oxide
Overall Length
3.8110 96.80MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.4800 12.19MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
18.00TPI
Thread Type
NC/UNC
Flute Direction
RIGHT
Thread Size
5/8"
Thread Limit
H3/GH3
Tap Style
Cut Spiral Flute
Tap Type
Bottoming
Dimension Standard
ANSI/ANSI
Tap Drill Range
0.5669 14.40MM - 0.5815 14.77MM
Tap Square
0.3570
Tap Chamfer
1.0P-2.0P
