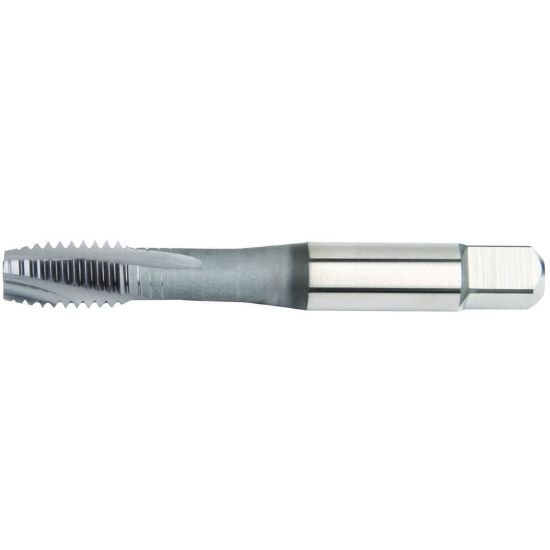

Picture of Widia/Kennametal GT925158 M8-1.25mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT925158 M8-1.25mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Part Number: WIDGT925158

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171762
Vendor: Sussex Tool and Supply
$0.00
WIDIA 5708361 M8x1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 2.7000 68.58MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Tap Chamfer 3.5P-5.0P
