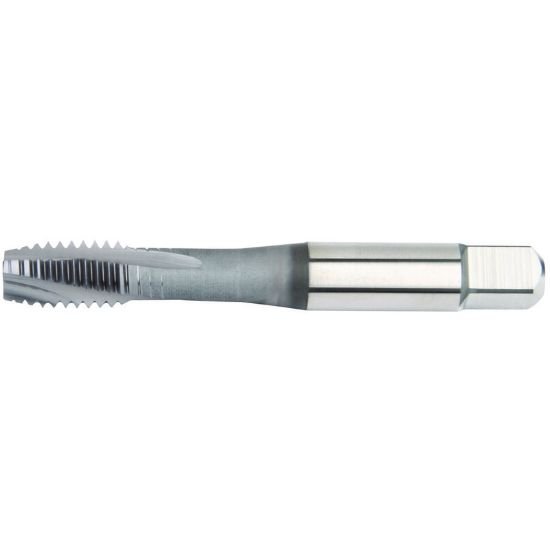

Widia/Kennametal GT925149 M12-1.75mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925149

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171751
Call (262) 251-4020 for pricing
WIDIA 5708327 M12x1.75MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide D6 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride + Steam Oxide
Overall Length 3.3800 85.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D6
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2720
Tap Chamfer 3.5P-5.0P
