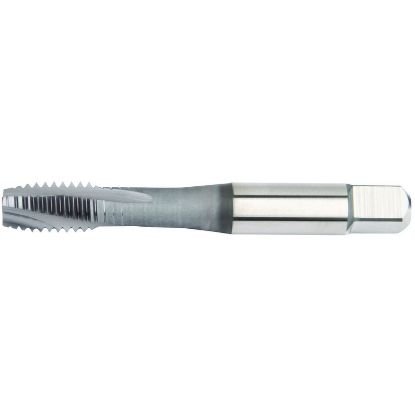

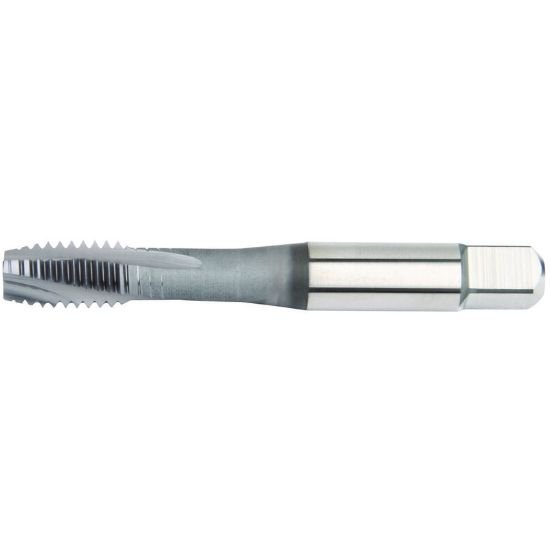

Picture of Widia/Kennametal GT925147 M10-1.50mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Widia/Kennametal GT925147 M10-1.50mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925147

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171749
Vendor: Sussex Tool and Supply
$0.00
Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Products specifications
Attribute name Attribute value
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3810 9.68MM
Thread Limit D6
Cutter Type Taping
Tap Square 0.2840
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 2.9220 74.22MM
Machine Side (Toolpost) TAP0.286x0.381
Cutting Edge Definition and shaped from blank ingots, Unlike traditional cutting tools, shaved, which are cut, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE-PM
Tool Material Steel
Coating Nitride + Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M10
Thread Pitch 1.50MM
Tap Chamfer 3.5P-5.0P
