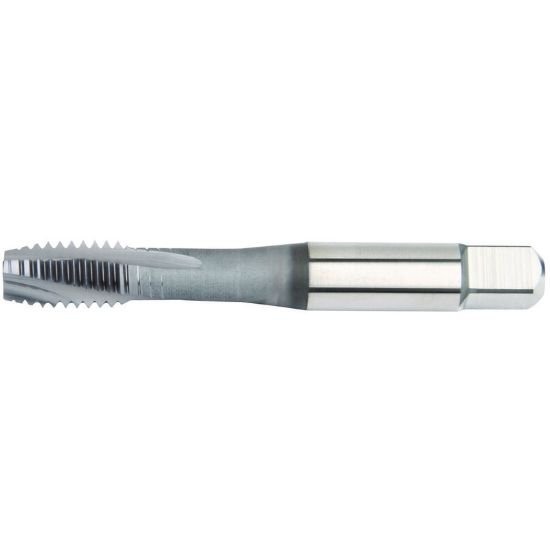

Widia/Kennametal GT925139 M3.5-0.60mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925139

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171753
Call (262) 251-4020 for pricing
WIDIA 5708333 M3.5x0.60MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide D4 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride + Steam Oxide
Overall Length 1.9900 50.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3.5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1080
Tap Chamfer 3.5P-5.0P
