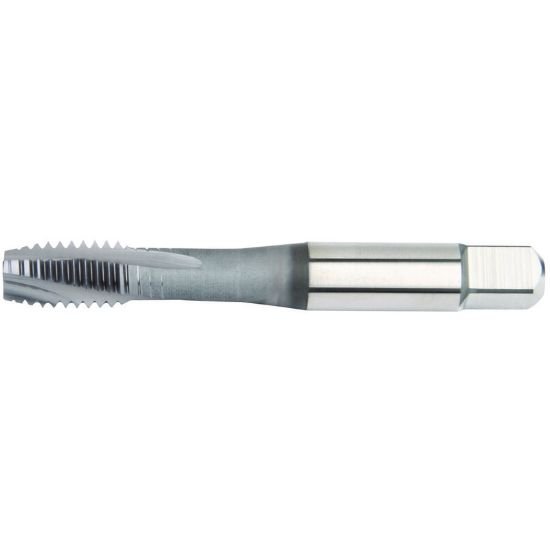

Picture of Widia/Kennametal GT925114 3/8-16.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT925114 3/8-16.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Part Number: WIDGT925114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171722
Vendor: Sussex Tool and Supply
$0.00
WIDIA 5708245 3/8"x16.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-PM TiCN GH7 +0.0035 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit GH7 +0.0035
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2840
Tap Chamfer 3.5P-5.0P
