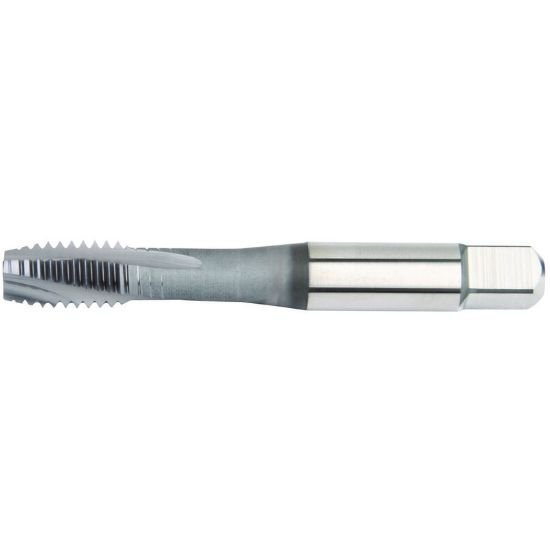

Widia/Kennametal GT925061 1/2-20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925061

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171707
Call (262) 251-4020 for pricing
WIDIA 5708198 1/2"x20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide GH7 +0.0035 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride + Steam Oxide
Overall Length 3.3800 85.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1/2"
Thread Limit GH7 +0.0035
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2720
Tap Chamfer 3.5P-5.0P
