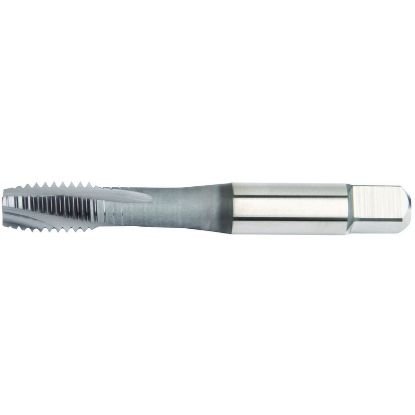

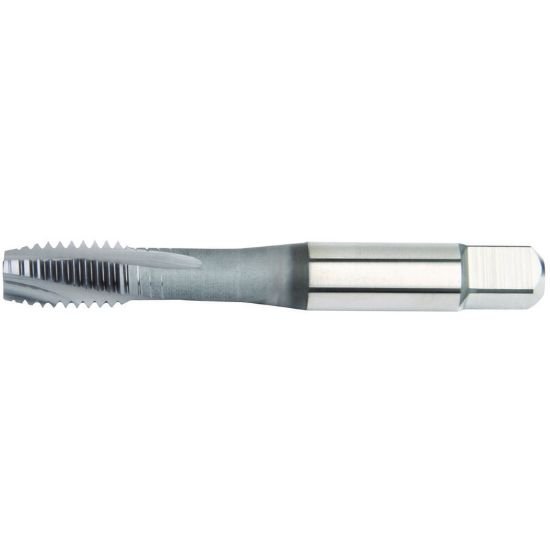

Widia/Kennametal GT925047 3/8-24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE Nitride + Steam Oxide

Part Number: WIDGT925047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171546
Call (262) 251-4020 for pricing
WIDIA 5705218 3/8"x24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE Nitride + Steam Oxide H3/GH3 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride + Steam Oxide
Overall Length 2.4000 60.96MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2840
Tap Chamfer 3.5P-5.0P
