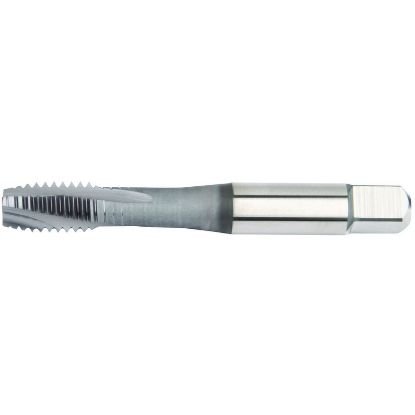

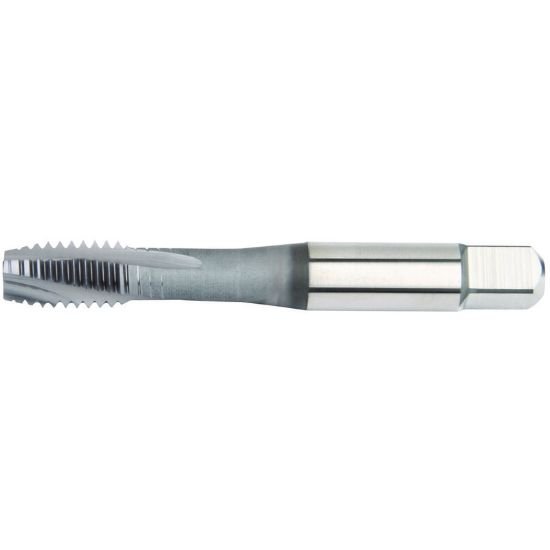

Picture of Widia/Kennametal GT925025 No.10-32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Widia/Kennametal GT925025 No.10-32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171684
Vendor: Sussex Tool and Supply
$0.00
Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Products specifications
Attribute name Attribute value
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.1940 4.93MM
Thread Limit H5/GH5
Cutter Type Taping
Tap Square 0.1500
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 2.4180 61.42MM
Machine Side (Toolpost) TAP0.152x0.194
Cutting Edge Definition and shaped from blank ingots, Unlike traditional cutting tools, shaved, which are cut, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE-PM
Tool Material Steel
Coating Nitride + Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size No.10
Thread Pitch 32.00TPI
Tap Chamfer 3.5P-5.0P
