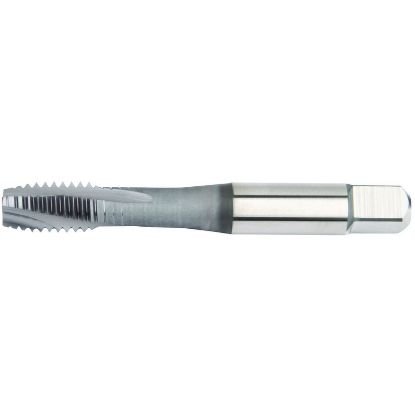

Widia/Kennametal GT925022 No.10-32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT925022
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1171680

Description

WIDIA 5708016 No.10x32.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide H3/GH3 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimensions & Sizing
Overall Length 2.3740 60.30MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1500
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
