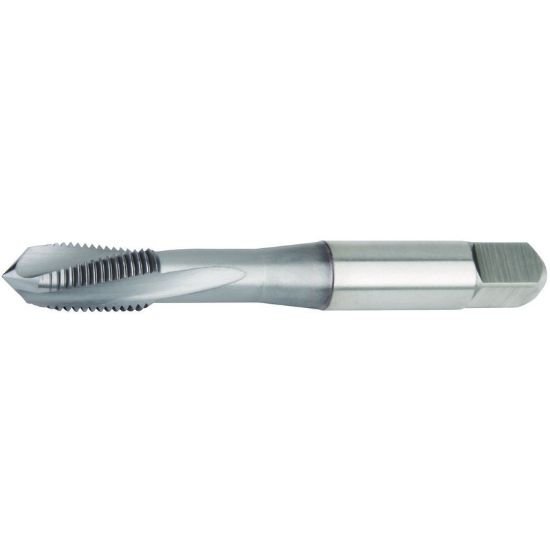

Widia/Kennametal GT905144 M12-1.25mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT905144

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171635
Call (262) 251-4020 for pricing
WIDIA 5705657 M12x1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide D5 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride + Steam Oxide
Overall Length 3.3800 85.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2720
Tap Chamfer 3.5P-5.0P
