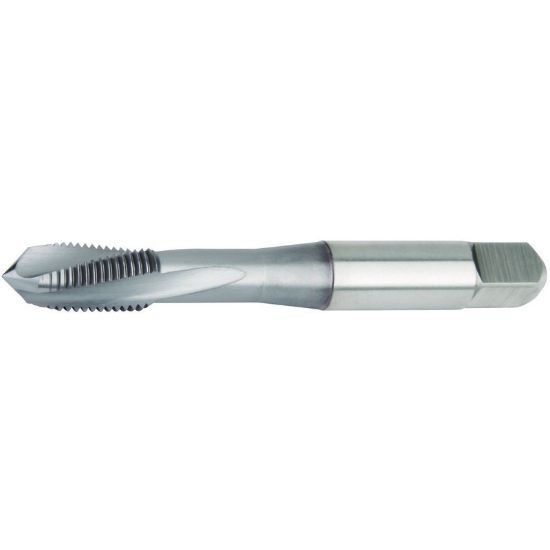

Widia/Kennametal GT905135 M3.5-0.60mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide
Part Number: WIDGT905135
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$33.33
Qty:
Add to cart
SKU:
1171542
Add to My List
Email a friend
Share This:
Description
WIDIA 5705072 M3.5x0.60MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide D4 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
General Information
Shipping State
Ohio
Made In USA
NO
Cutter Type
Tapping
Coolant Thru
Non Coolant
Type Of Tool
Tap
Length Type
STANDARD
Thread Type
METRIC
Flute Direction
RIGHT
Tap Style
Cut Spiral Flute
Tap Type
Plug
Tap Chamfer
3.5P-5.0P
Dimensions & Sizing
Overall Length
1.9900 50.55MM
Shank/Pilot Dia
0.1410 3.58MM
Flutes/Inserts
3
Thread Pitch
0.60MM
Thread Size
M3.5
Tap Drill Range
0.1134 2.88MM - 0.1193 3.03MM
Tap Square
0.1080
Performance & Capacity
Cut Rating
Stainless Steel, <40HRC Steel
Performance Rating
High Performance
Tolerances & Accuracy
Thread Limit
D4
Materials & Finish
Tool Material
Steel
Cutting Edge Mat
HSSE-PM
Coating
Nitride + Steam Oxide
Standards & Identification
Dimension Standard
ANSI/ANSI
