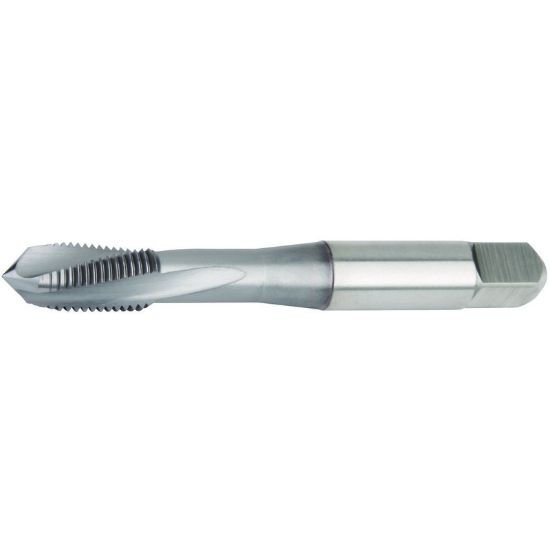

Picture of Widia/Kennametal GT905130 3/4-10.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT905130 3/4-10.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Part Number: WIDGT905130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171605
Vendor: Sussex Tool and Supply
$0.00
WIDIA 5705610 3/4"x10.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiCN H3/GH3 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 4.2520 108.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4390
Tap Chamfer 3.5P-5.0P
