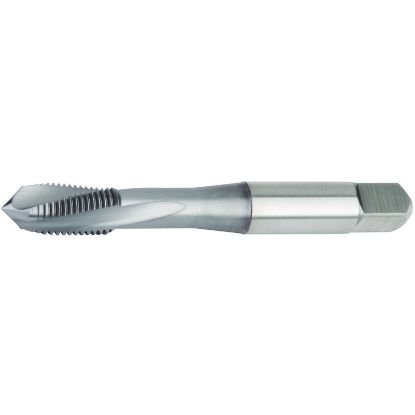

Picture of Widia/Kennametal GT905061 1/2-20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Widia/Kennametal GT905061 1/2-20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT905061
Looking for alternatives…
Find a drill for this tap 1/2" × 20.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171594
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 5705582 1/2"x20.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide GH7 +0.0035 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2720
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
