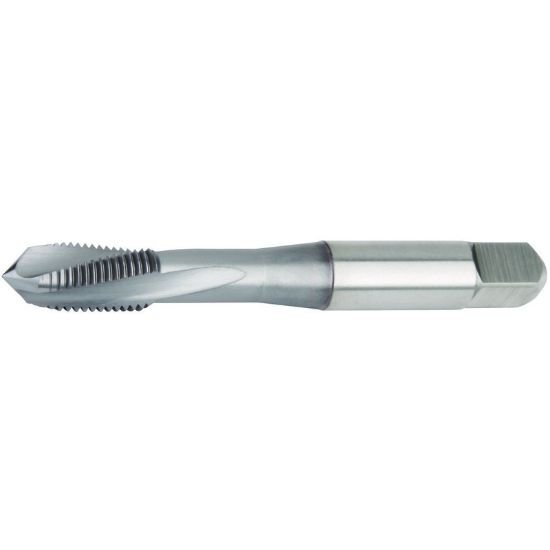

Picture of Widia/Kennametal GT905059 1/2-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Widia/Kennametal GT905059 1/2-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT905059
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$59.49
SKU: 1171592

Description

WIDIA 5705580 1/2"x20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM Nitride + Steam Oxide H3/GH3 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2720
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
