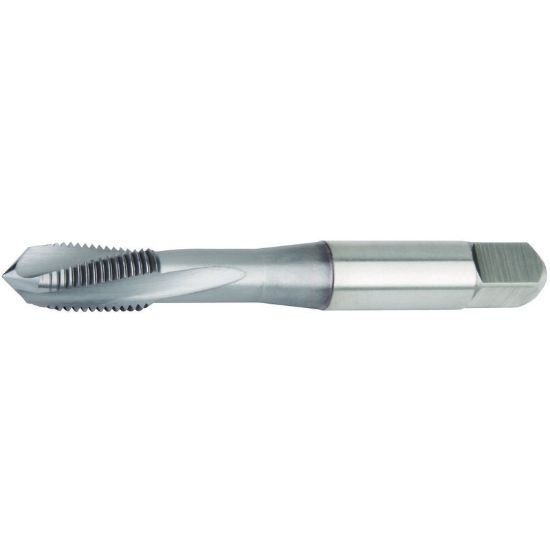

Picture of Widia/Kennametal GT905035 1/4-28.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Widia/Kennametal GT905035 1/4-28.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-Powder Metal Nitride + Steam Oxide

Part Number: WIDGT905035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171603
Vendor: Sussex Tool and Supply
$0.00
Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.2550 6.48MM
Thread Limit GH7 +0.0035
Cutter Type Taping
Tap Square 0.1890
Length Type STANDARD
Performance Rating High Performance
Tap Style Over Sized Plug
Overall Length 2.5100 63.75MM
Machine Side (Toolpost) TAP0.191x0.255
Cutting Edge Definition and shaped from blank ingots, Unlike traditional cutting tools, shaved, which are cut, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE-PM
Tool Material Steel
Coating Nitride + Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1/4"
Thread Pitch 28.00TPI
Tap Chamfer 3.5P-5.0P
