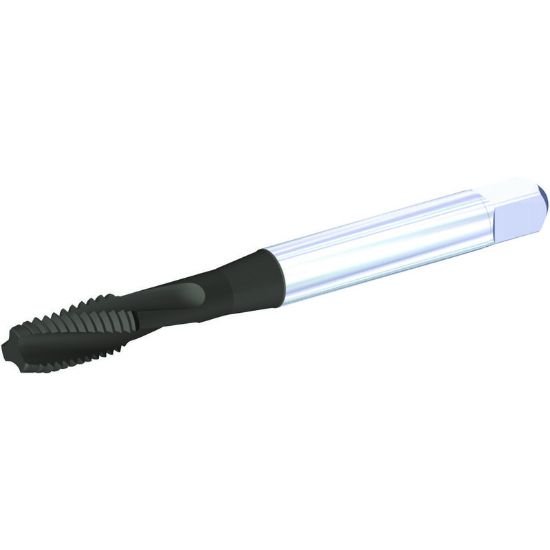

Picture of Widia/Kennametal GT865011 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Widia/Kennametal GT865011 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Part Number: WIDGT865011
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$32.04
SKU: 1171467

Description

WIDIA 5690818 No.4x40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 2.2050 56.01MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1080
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TiN + CrC
Standards & Identification
Dimension Standard DINSI
