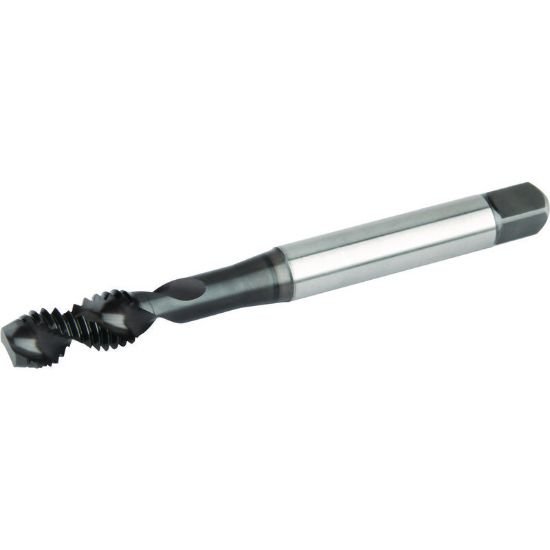

Picture of Widia/Kennametal GT825023 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Widia/Kennametal GT825023 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC

Part Number: WIDGT825023

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171450
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5690786 5/16"x24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN + CrC H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating TiN + CrC
Overall Length 3.5430 89.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2360
Tap Chamfer 2.5P-3.0P
