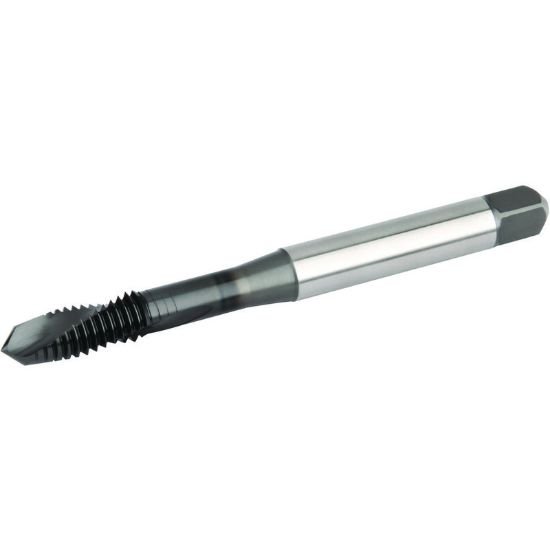

Picture of Widia/Kennametal GT725031 7/16-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Widia/Kennametal GT725031 7/16-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Part Number: WIDGT725031

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171502
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5690926 7/16"x20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 3.9450 100.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2400
Tap Chamfer 3.5P-5.0P
