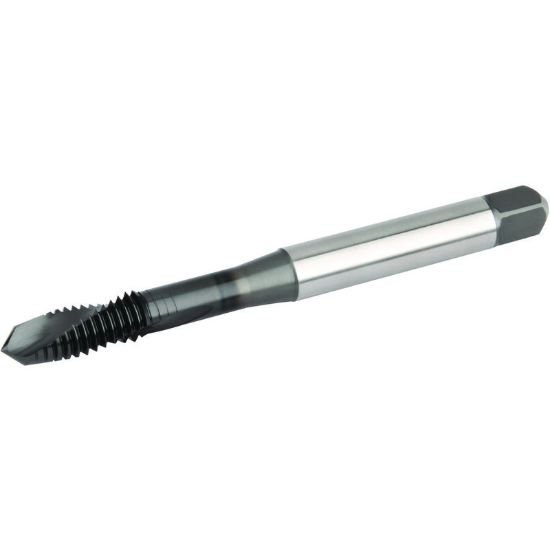

Picture of Widia/Kennametal GT725019 1/4-28.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Widia/Kennametal GT725019 1/4-28.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Part Number: WIDGT725019

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171496
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.2550 6.48MM
Thread Limit H3/GH3
Cutter Type Taping
Tap Square 0.1890
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 3.1560 80.16MM
Machine Side (Toolpost) TAP0.191x0.255
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating TiN + CrC
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1/4"
Thread Pitch 28.00TPI
Tap Chamfer 3.5P-5.0P
