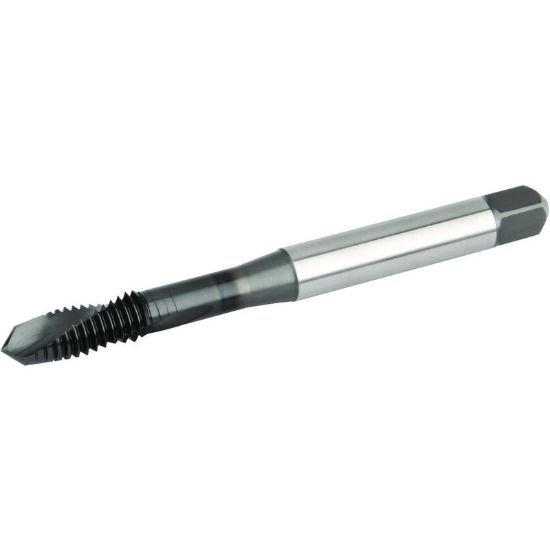

Picture of Widia/Kennametal GT725011 No.4-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Widia/Kennametal GT725011 No.4-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC

Part Number: WIDGT725011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171488
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5690894 No.4x40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN + CrC H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1080
Tap Chamfer 3.5P-5.0P
