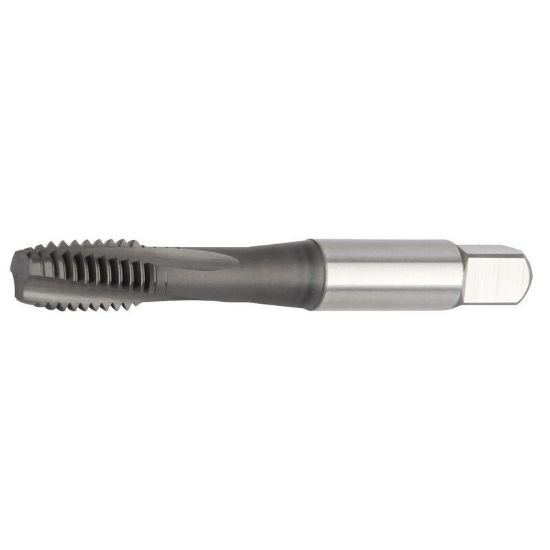

Picture of Widia/Kennametal GT625522 M12-1.75mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT625522 M12-1.75mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT625522
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.75MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171272
Vendor: Sussex Tool and Supply
$112.43

Description

WIDIA 5565238 M12x1.75MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-PM TiN + CrC D6 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2720
Performance & Capacity
Cut Rating High Temp, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiN + CrC
Standards & Identification
Dimension Standard ANSI/ANSI
