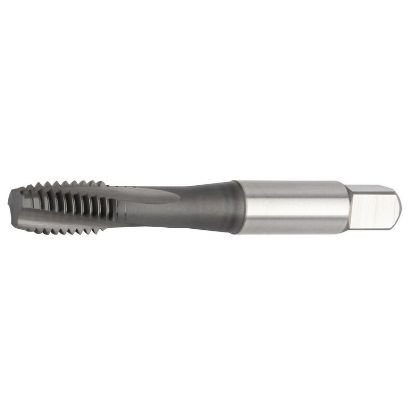

Picture of Widia/Kennametal GT625506 M3-0.50mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT625506 M3-0.50mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT625506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171260
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5565222 M3x0.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-PM TiN + CrC D3 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Titanium
Coating TiN + CrC
Overall Length 1.9370 49.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Square 0.1080
Tap Chamfer 2.5P-3.0P
