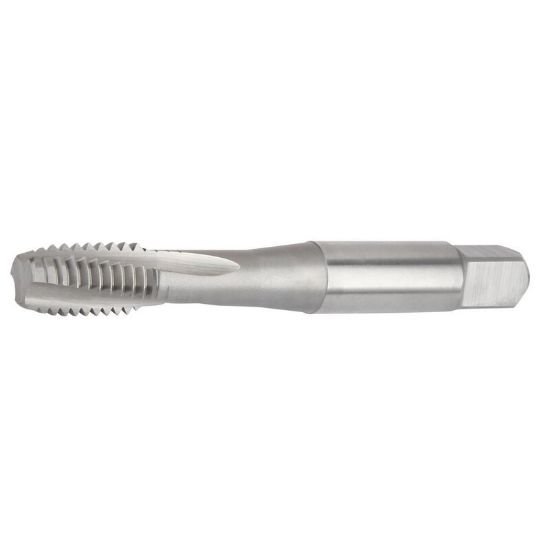

Picture of Widia/Kennametal GT625058 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT625058 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT625058

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171243
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5565199 7/16"x20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-PM TiN + CrC H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Titanium
Coating TiN + CrC
Overall Length 3.1600 80.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2390
Tap Chamfer 2.5P-3.0P
