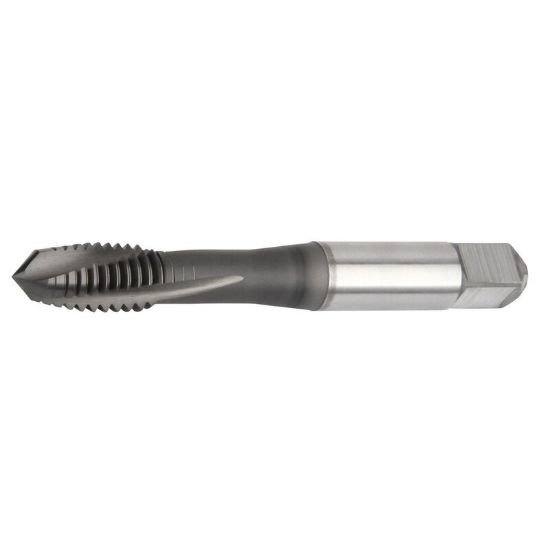

Picture of Widia/Kennametal GT605515 M8-1.25mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605515 M8-1.25mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605515
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1171207

Description

WIDIA 5563043 M8x1.25MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiN + CrC
Standards & Identification
Dimension Standard ANSI/ANSI
