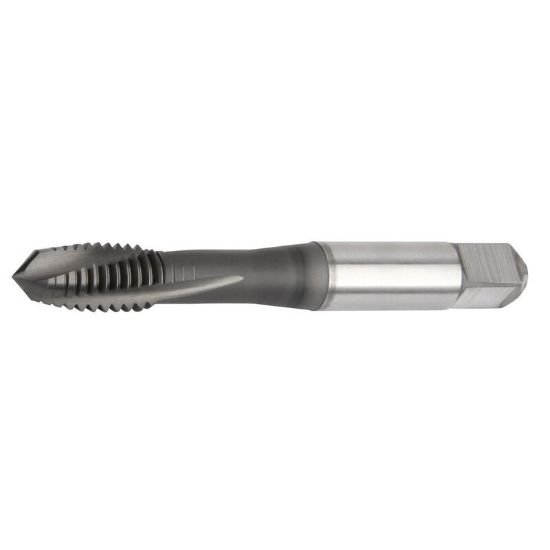

Picture of Widia/Kennametal GT605503 M2.5-0.45mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605503 M2.5-0.45mm Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605503

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171202
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5563021 M2.5x0.45MM Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC D3 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 1.8100 45.97MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.45MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M2.5
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1080
Tap Chamfer 3.5P-5.0P
