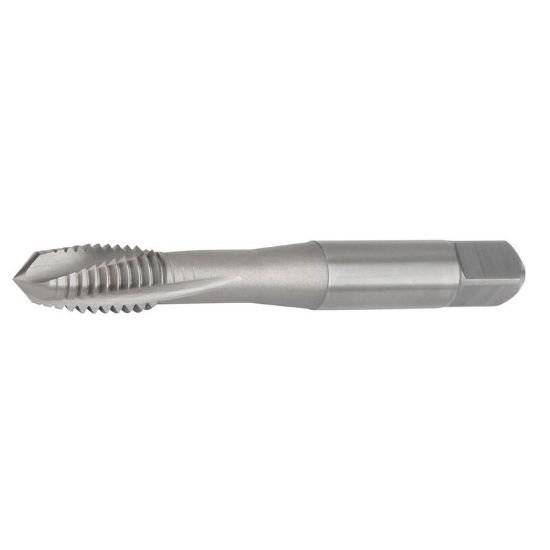

Picture of Widia/Kennametal GT605059 9/16-18.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605059 9/16-18.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605059

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171193
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5563012 9/16"x18.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 3.5940 91.29MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3190
Tap Chamfer 3.5P-5.0P
