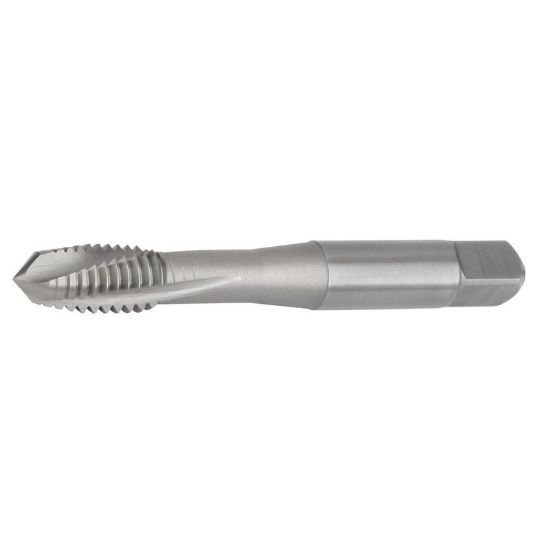

Picture of Widia/Kennametal GT605046 3/8-16.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605046 3/8-16.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171185
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5562989 3/8"x16.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2840
Tap Chamfer 3.5P-5.0P
